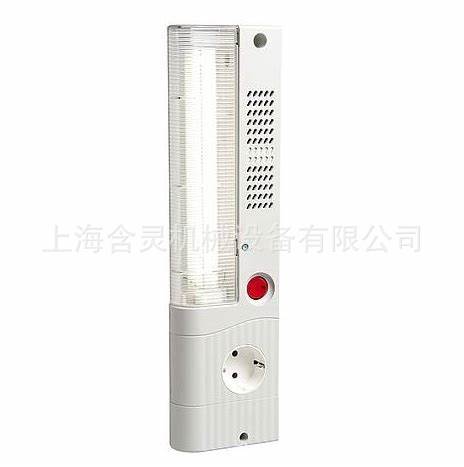

上海含灵机械代理销售stego细管荧光灯02520.0-00
电压：230V
功率 11w
光通量 900lm
使用寿命 10000小时
安装方式：螺纹安装 /磁条安装
尺寸：345*91*40mm
使用环境温度 ：-45-+70°C
上海含灵机械设备有限公司
电话：021-60548556 021- 60548557 手机 13817136125
传真：021- 56183857
邮箱：infohanling@aliyun.com
QQ : 283190163 909955817
Art. No.ModelOperating voltageSocketNominal currentWeight (approx.)Protection classApprovals02520.0-00without magnet230VAC, 50/60HzGermany/Russia (1)16.0A0.4kgI (earthed)VDE-GS-EAC02520.1-01with magnet230VAC, 50/60HzGermany/Russia (1)16.0A0.5kgI (earthed)VDE-GS-EAC02521.0-00without magnet230VAC, 50/60HzF/PL/CZ/SK (2)16.0A0.4kgI (earthed)VDE-GS-EAC02521.1-04with magnet230VAC, 50/60HzF/PL/CZ/SK (2)16.0A0.5kgI (earthed)VDE-GS-EAC02522.0-00without magnet230VAC, 50/60HzSwitzerland (3)10.0A0.4kgI (earthed)VDE-GS-EAC02522.1-01with magnet230VAC, 50/60HzSwitzerland (3)10.0A0.5kgI (earthed)VDE-GS-EAC02523.0-00without magnet230VAC, 50/60HzUK/Ireland (4)13.0A0.4kgI (earthed)VDE-GS-EAC02523.1-05with magnet230VAC, 50/60HzUK/Ireland (4)13.0A0.5kgI (earthed)VDE-GS-EAC02524.0-01without magnet120VAC, 50/60HzUSA/Canada (5)15.0A0.4kgI (earthed)-UL File No. E234324EAC02524.1-05with magnet120VAC, 50/60HzUSA/Canada (5)15.0A0.5kgI (earthed)-UL File No. E234324EAC02527.0-00without magnet230VAC, 50/60Hznone-0.4kgII (double insulated)VDE-GSUL File No. E234324EAC02527.1-14with magnet230VAC, 50/60Hznone-0.5kgII (double insulated)VDE-GS-EAC02527.0-10without magnet120VAC, 50/60Hznone-0.4kgII (double insulated)-UL File No. E234324EAC02527.1-11with magnet120VAC, 50/60Hznone-0.5kgII (double insulated)-UL File No. E234324EAC02525.0-00without magnet24-48VDCnone-0.4kgII (double insulated)VDE-GSUL File No. E234324EAC02525.1-01with magnet24-48VDCnone-0.5kgII (double insulated)VDE-GSUL File No. E234324EAC
stego配电柜照明灯系列 stego照明灯 stego荧光灯 stego led灯
Lamp LED 025 LED灯
all AC 100-240 V, 50-60 Hz switch, magnet fixing 02540.0-00 46.73
switch, screw fixing 02540.0-01
sensor, magnet fixing 02541.0-00
sensor, screw fixing 02541.0-01
all DC 24-48 V
switch, magnet fixing 02540.1-00
switch, screw fixing 02540.1-01
sensor, magnet fixing 02541.1-00
sensor, screw fixing 02541.1-01
Accessories LED 025 Connector female connector AC (white) 264057
male connector AC (white) 264058
female connector DC (blue) 264059
male connector DC (blue) 264060
Cables (b) cable AC 2m VDE 244356
(incl. female con.) cable AC 2m UL 244357
cable DC 2m VDE 244360
cable DC 2m UL 244361 12.82
Cables (daisy chain)cable AC 1m VDE 244358
(incl. connectors) cable AC 1m UL 244359
cable DC 1m VDE 244362
cable DC 1m UL 244363
Slimline Lamp SL 025 荧光灯 German socket 02520.0-00
on/off switch France/Poland socket 02521.0-00
without magnet fixing Swiss socket 02522.0-00
all AC 230 V, 50 Hz, 11 W UK/Ireland socket 02523.0-00
only without socket: without socket 02527.0-00
Slimline Lamp SL 025 German socket 02520.1-01
on/off switch France/Poland socket 02521.1-04
with magnet fixing Swiss socket 02522.1-01
all AC 230 V, 50 Hz, 11 W UK/Ireland socket 02523.1-05
without socket 02527.1-14
Slimline Lamp SL 025 German socket 02520.0-03
movement sensor France/Poland socket 02521.0-03
without magnet fixing Swiss socket 02522.0-03
all AC 230 V, 50 Hz, 11 W UK/Ireland socket 02523.0-03
only without socket: without socket 02527.0-04
Slimline Lamp SL 025 German socket 02520.1-04
movement sensor France/Poland socket 02521.1-05
with magnet fixing Swiss socket 02522.1-04
all AC 230 V, 50 Hz, 11W UK/Ireland socket 02523.1-04
without socket 02527.1-15
19" Slimline Lamp SL 025 German socket 02520.0-02
on/off switch France/Poland socket 02521.0-02
all AC 230 V, 50 Hz, 11 W Swiss socket 02522.0-02
UK/Ireland socket 02523.0-02
without socket 02527.0-02
Compact Lamp KL 025 German socket 02500.0-00
all AC 230 V, 50 Hz, 11 W without socket 02500.0-07
France/Poland socket 02501.0-00
Swiss socket 02502.0-00
UK/Ireland socket 02510.0-00
Italian socket 02512.0-00
Lamp Cover 09520.0-00
Dual Lamp DL 026 with on/off switch 02600.0-00
(screw fixing) with movement sensor 02601.0-00 all AC 230 V, 50 Hz, 20 W wall holder with connection cable 03410.0-00
self-adhesive fixing plates (pack. unit = 2 pieces) 09515.0-00
Dual Lamp DL 026 with on/off switch 02600.0-01
(incl. self-adhesive fixing plates) with movement sensor 02601.0-01
all AC 230 V, 50 Hz, 20 W wall holder with connection cable 03410.0-00
Hand Lamp with lamp holder DL 026 AC 230 V, 50 Hz, 20 W 02610.0-00
