DIGITAL VOLTAGE PHASING METER
?  Instrument for measuring overhead and underground voltages.
?  Three modes of operation AC, Hi-Pot, and DC.
?  0-40KV meter up to 240KV with resistors.
?  Automatically adjust voltage display to match resistors if used.
?  Hi-Pot mode for testing URD Cable.
?  In Hi-Pot mode bar graph marks the peak voltage while cable is
being charged.
?  0-4KV DC.
?  Large easy to read digital meter and analog bar graph.
?  Meter reads to nearest 100 volts.
?  Meter has lighted background that can be turned on for use in
poor light conditions.
?  Meter enclosure made of high quality rugged extruded aluminum.
?  Auto shutdown after 40 minutes if no voltage is detected.
?  Long battery life from three AA’s.
?  Auto self test and battery check during start up.
?  The coiled, self retracting cable is 16” retracted and 10’ when
fully extended.
?  Unit includes:  Digital volt meter, conductor hooks, carry case,
batteries, and instructions.

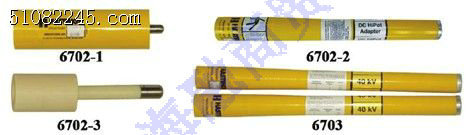

EXTENDED VOLTAGE RANGES FOR PHASING METERS
May be used on higher voltages with additional pairs of
extension resistors.  These extension resistors must be used in
pairs to increase the voltage range.
NUMBER OF
RESISTOR PAIRS
RANGE
0 40KV
1 80KV
2 120KV
3 160KV
4 200KV
5 240KV
